Wooden Door Six Axis Wood Painting Machine 5KW Automatic reciprocating

Ask Lasest Price
Brand Name :	Songqi
Model Number :	SQ600x
Certification :	ISO9001
Supply Ability :	200 Set/Sets per Year
Price :	Negotiable
Payment Terms :	D/P, D/A, L/C, T/T
Delivery Time :	15-20

Add to Cart

Product Details
Company Profile

Wooden Door Six Axis Wood Painting Machine 5KW Automatic reciprocating

Wooden Door Six Axis Wood Painting Machine 5KW Automatic Reciprocating

Automatic Six axis spray painting machine for wooden door/ painting machine

Product Application

With the process of society, munal spraying has failed to meet the needs of modern industry. So, it is necessary to use automatic spraying take place of manual spraying. This spraying mchine is professional application for wooden door coating . Its design depend on the shape and size , coating process of wooden door. This machine spray a wooden door both two sides in 3 minutes.

SPECIFICATIONS FOR SPRAYING MACHINE
Control system	1. Japanese OMRON PLC 2. Taiwan WEINTEK Color industrial touch screen 3. Schneider Electric switch and Power Supply 4. Japanese OMRON relay


Drive system	Japanese Panasonnic servo drive system


Transmission system	1. Aluminium profile module 2. Taiwan HIWIN Linear guide rail 3. Taiwan HIWIN Silent slide 4. Precision synchronous wheel 5. Italy Megadyne Synchronous belt with steel wire 6. positioning accuracy difference ±1mm


Product exchang platform	1.Precision divider 2.Taiwan CPG Gear motor 3. Japanese Mitsubishi frequency converter
Product rotation platform	1. Precision divider 2. Can be 90 degrees, 180 degrees rotation, continuous rotation 3. Automatic turning surface
Spray gun	Japanese ANEST IWATA
Paint supply system	1. Amercian GRACO 308 diaphragm pump 2. Pneumatic agitator produce from Taiwan,China 3. Taiwan AIRTAC Solenoid valve, Pressure regulating valve, Pressure gauge
Power supply	AC220V50HZ, Single phase three wire

Wooden Door Six Axis Wood Painting Machine 5KW Automatic reciprocating

Certifications

Detailed Images

Machine Parts

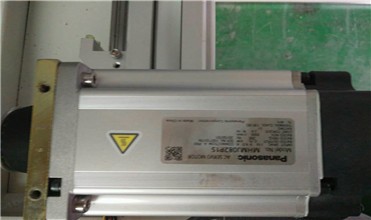

Name: servo motor

Brand: Panasonnic

Original: Japanese

positioning accuracy ± 0.5mm

Main Features

Name: Linear guide rail and Silent slide
Brand: HIWIN
Original: Taiwan China
positioning accuracy ± 0.5mm

no noise

Machine Parts

Name: spray gun
Brand: IWATA
Original: Japanese
air spray gun

Main Features

Name: touch screen
Brand: WEINTEK
Original: Taiwan China
10 inch

Color industrial touch screen

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery
