    On Line Tracking Automatic Spray Painting Machine 4KW For Car Navigation Pane

    Ask Lasest Price
    Brand Name : Songqi
    Model Number : SQ500x
    Certification : ISO9001
    Supply Ability : 200 Set/Sets per Year
    Price : Negotiable
    Payment Terms : D/P, D/A, L/C, T/T
    Delivery Time : 15-20
    • Product Details
    • Company Profile

    On Line Tracking Automatic Spray Painting Machine 4KW For Car Navigation Pane

    On Line Tracking Automatic Spray Painting Machine 4KW For Car Navigation Pane


    Automatic Spray Coating Machine/On-line tracking automatic spray painting machinefor car navigation pane


    Product Application

    With the process of society, munal spraying has failed to meet the needs of modern industry. So, it is necessary to use automatic spraying take place of manual spraying.

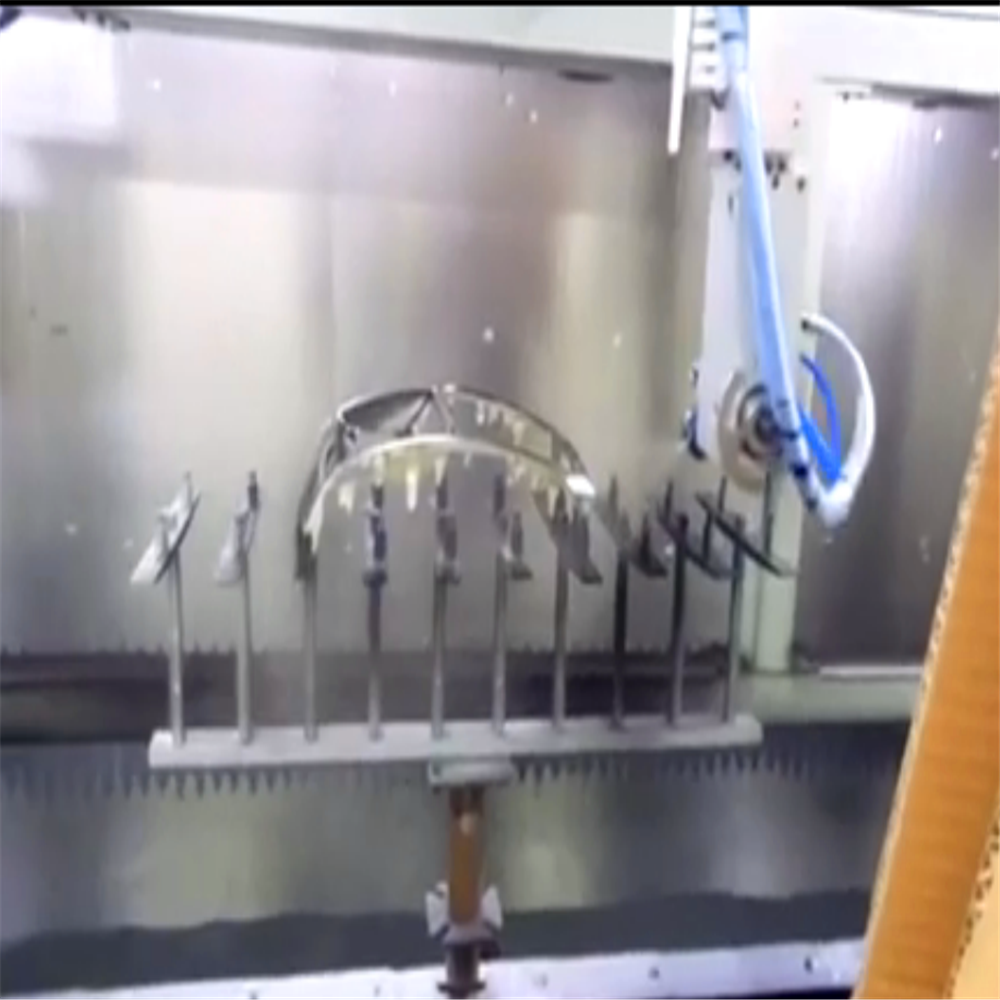

    This spraying mchine is professional designed for car navigation panell. The design of this machine depends on the shape and size , coating process of car navigation panell. The machine tracking spray the car navigation panelll which putted on the line with fixture . when the machine sensing the car navigation panell, then tracking spray all aspects of it. After finish spraying, the machine stop and waiting for the next.

    The difference between automatic spraying and manual spraying(Normally)
    Automatic spraying
    Manual spraying
    Spray gun
    high atomization
    Low atomization
    Spraying quality
    High
    Low
    Spraying speed
    Fast
    low
    Paint needs
    Less
    more
    Damage to the human body
    Less
    more
    Working hours
    24h
    8h
    managed cost
    Less
    more
    Factory output
    more
    less
    SPECIFICATIONS FOR SPRAYING MACHINE
    Control system
    1.Japanese OMRON PLC

    2.Taiwan WEINTEK Color industrial touch screen

    3.Schneider Electric switch and Power Supply

    4. Japanese OMRON relay
    Drive system
    Japanese Panasonnic servo drive system
    Transmission system
    1. Aluminium profile module

    2. Taiwan HIWIN Linear guide rail

    3. Taiwan HIWIN Silent slide

    4. Precision synchronous wheel

    5. Italy Megadyne Synchronous belt with steel wire

    6. positioning accuracy difference ±1mm
    Product exchang platform
    1.Precision divider

    2.Taiwan CPG Gear motor

    3. Japanese Mitsubishi frequency converter
    Product rotation platform
    1. Precision divider

    2.Can be 90 degrees, 180 degrees rotation, continuous rotation
    3.Automatic turning surface
    Spray gun
    Japanese DEVILSS
    Paint supply system


    1.Amercian GRACO 308 diaphragm pump

    2.Pneumatic agitator produce from Taiwan,China

    3.Taiwan AIRTAC Solenoid valve, Pressure regulating valve, Pressure gauge
    Power supply
    AC220V50HZ, Single phase three wire
    On Line Tracking Automatic Spray Painting Machine 4KW For Car Navigation Pane
    On Line Tracking Automatic Spray Painting Machine 4KW For Car Navigation Pane
    On Line Tracking Automatic Spray Painting Machine 4KW For Car Navigation Pane
    On Line Tracking Automatic Spray Painting Machine 4KW For Car Navigation Pane
    On Line Tracking Automatic Spray Painting Machine 4KW For Car Navigation Pane
    On Line Tracking Automatic Spray Painting Machine 4KW For Car Navigation Pane
    Detailed Images
    On Line Tracking Automatic Spray Painting Machine 4KW For Car Navigation Pane

    Machine Parts

    Name: servo motor

    Brand: Panasonnic

    Original: Japanese

    positioning accuracy ± 0.5mm

    Main Features

    Name: Linear guide rail and Silent slide
    Brand: HIWIN
    Original: Taiwan China
    positioning accuracy ± 0.5mm

    no noise

    On Line Tracking Automatic Spray Painting Machine 4KW For Car Navigation Pane
    On Line Tracking Automatic Spray Painting Machine 4KW For Car Navigation Pane

    Machine Parts

    Name: spray gun
    Brand: DEVILSS
    Original: Japanese
    T-APGV spray gun

    HVLP

    Main Features

    Name: touch screen
    Brand: WEINTEK
    Original: Taiwan China
    10 inch

    Color industrial touch screen

    On Line Tracking Automatic Spray Painting Machine 4KW For Car Navigation Pane
    Our Service
    On Line Tracking Automatic Spray Painting Machine 4KW For Car Navigation Pane
    On Line Tracking Automatic Spray Painting Machine 4KW For Car Navigation Pane

    Pre-Sales Service

    * Inquiry and consulting support.

    * Sample testing support.

    * View our Factory.

    After-Sales Service

    * Training how to instal the machine, training how to use the machine.

    * Engineers available to service machinery overseas.
