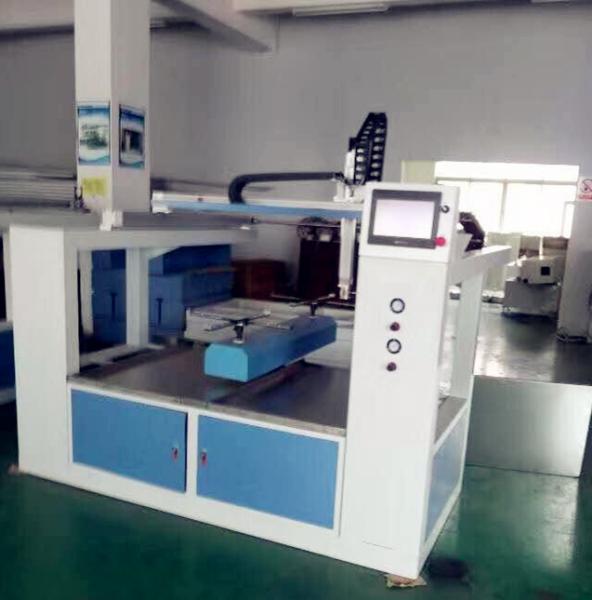

1. The X axis sliding platform: 1 sets of Taiwan Zirun module,
linear guide rail and slide THK Japan, the fastest speed of 1.5M/S,
"Magodi" in Italy with the same steel belt, reciprocating
precision, long service life, inertia servo motor of Japan's
Matsushita 750W; 2. The Y axis sliding platform: Taiwan Zirun module 2 sets, linear
guide and slide THK Japan, the fastest speed of 1.5M/S, "Magodi" in
Italy with the same steel belt, reciprocating precision, long
service life, Panasonic servo motor 750W; 3. Z: the combination of shaft lifting gear rack type adjustable
structure, Italy magadyne belt steel wire synchronous belt, high
repetition accuracy, 400W servo motor drive, speed of 0.2 meters
per second, upper and lower displacement adjustable range 400MM; 4. W spray gun rotating shaft: motor fixed on the Z axis, through
the turbine reducer and coupling to drive the rotating shaft of the
spray gun, effectively avoid paint pollution, power use Taiwan race
motor drive, angle 0-90 degrees adjustable; increase the gun
rotating flexibility, can spray the work piece side 5. Work piece rotation platform: two station disk, angle can drive
90, 180. autobiography time 1-3S; 6. Standard stainless steel bottom plate, reducing the oil mist
pollution, clean environment. The tray completely into water spray
gun into the cabinet, drencher cabinets paint maintenance and
cleaning work less, paint mist rebound less; 7. Axis of Revolution: 1 sets of revolution parts of structures
produced by Taiwan 110 type high precision protractor control,
chain drive, powered by the city of Taiwan gear motor, inverter,
accurate positioning, stable performance, revolution of 180 degrees
2-4s. 8. Control system: Taiwan 10 inch color touch screen, the Japanese
OMRON central controller, buttons and components are used in Taiwan
brand, configuration of limit and the origin of induction switch,
stable performance, teaching operation, can be equipped with
various spraying procedures, can store and save the corresponding
formula; 9. Frame: 100 * 100 square CRC and plate welding, edge plate with
4mm steel plate welded into modular structure, 10. Pallet fixture: equipped with standard flange, two times,
customer own 11 . Machine size: W2200*D1900*H2150 |
Japan Anest Iwata 1, diameter 1.1mm Taiwan Yadeke electromagnetic valve 1 set Taiwan Yadeke pressure regulating valve and pressure regulating
table 1 set Taiwan Mitutoyo double diaphragm pump 1 Units Taiwan high flow regulator 1 Buffer tank, suction tray, etc. 1 1 sets of 5 gallon mixers in Taiwan Stainless steel paint bucket 1 1 groups of ultra soft coating pipes in Japan (including oil return
system) 1 groups of trachea and joint |
