PLC Control Automatic Powder Coating Machine Four Axis 4KW Fast Peed

Ask Lasest Price
Brand Name :	Songqi
Model Number :	SQ400x
Certification :	ISO9001
Supply Ability :	200 Set/Sets per Year
Price :	Negotiable
Payment Terms :	D/P, D/A, L/C, T/T
Delivery Time :	20-35days

Add to Cart

Product Details
Company Profile

PLC Control Automatic Powder Coating Machine Four Axis 4KW Fast Peed

PLC Control Automatic Powder Coating Machine Four Axis 4KW Fast Peed

Easy to operate Automatic spray coating machine for glass

Product Application

With the process of society, munal spraying has failed to meet the needs of modern industry. So, it is necessary to use automatic spraying take place of manual spraying.

This spraying mchine is professional designed for galss. As far as i know , the coating film of glass demands very uniform and smooth,, so, the automatic spraying is your bright choice. Using air spray system is a right way to get a better coatign film than manual spraying .The design of this machine depends on the shape and size , coating process of automotive interior parts.

The difference between automatic spraying and manual spraying(Normally)
	Automatic spraying	Manual spraying
Spray gun	high atomization	Low atomization
Spraying quality	High	Low
Spraying speed	Fast	low
Paint needs	Less	more
Damage to the human body	Less	more
Working hours	24h	8h
managed cost	Less	more
Factory output	more	less

SPECIFICATIONS FOR SPRAYING MACHINE
Control system	1. Japanese OMRON PLC 2. Taiwan WEINTEK Color industrial touch screen 3. Schneider Electric switch and Power Supply 4. Japanese OMRON relay


Drive system	Japanese Panasonnic servo drive system

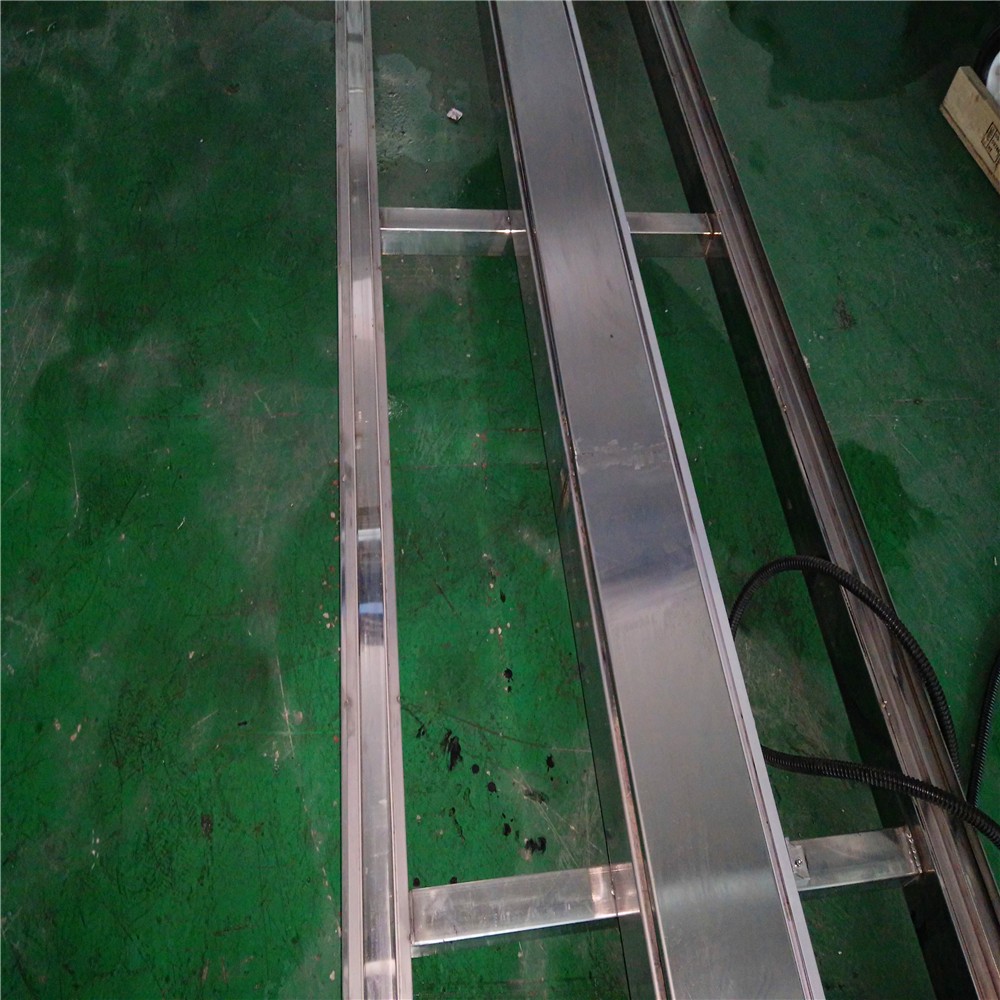

Transmission system	1. Aluminium profile module 2. Taiwan HIWIN Linear guide rail 3. Taiwan HIWIN Silent slide 4. Precision synchronous wheel 5. Italy Megadyne Synchronous belt with steel wire 6. positioning accuracy difference ±1mm

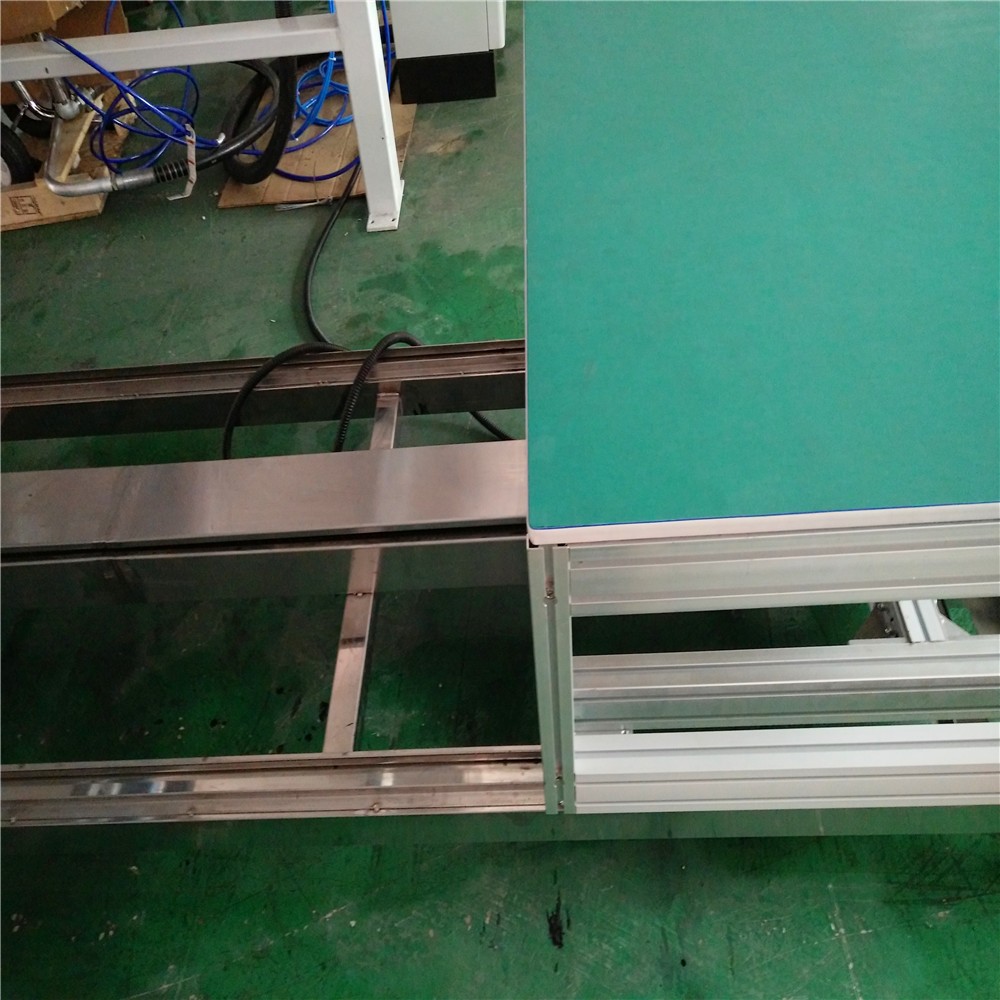

Product exchang platform	1.sliding platform, drived by Panasonic servo motor,gear-rack drive. 2.It is made of aluminum, coated wood board and rubber 3.automatic move forward and back
Spray gun	Amercian GRACO
Paint supply system	1. Amercian GRACO plunger pump 2. Taiwan AIRTAC Solenoid valve, Pressure regulating valve, Pressure gauge
Power supply	AC220V50HZ, Single phase three wire

PLC Control Automatic Powder Coating Machine Four Axis 4KW Fast Peed

Certifications

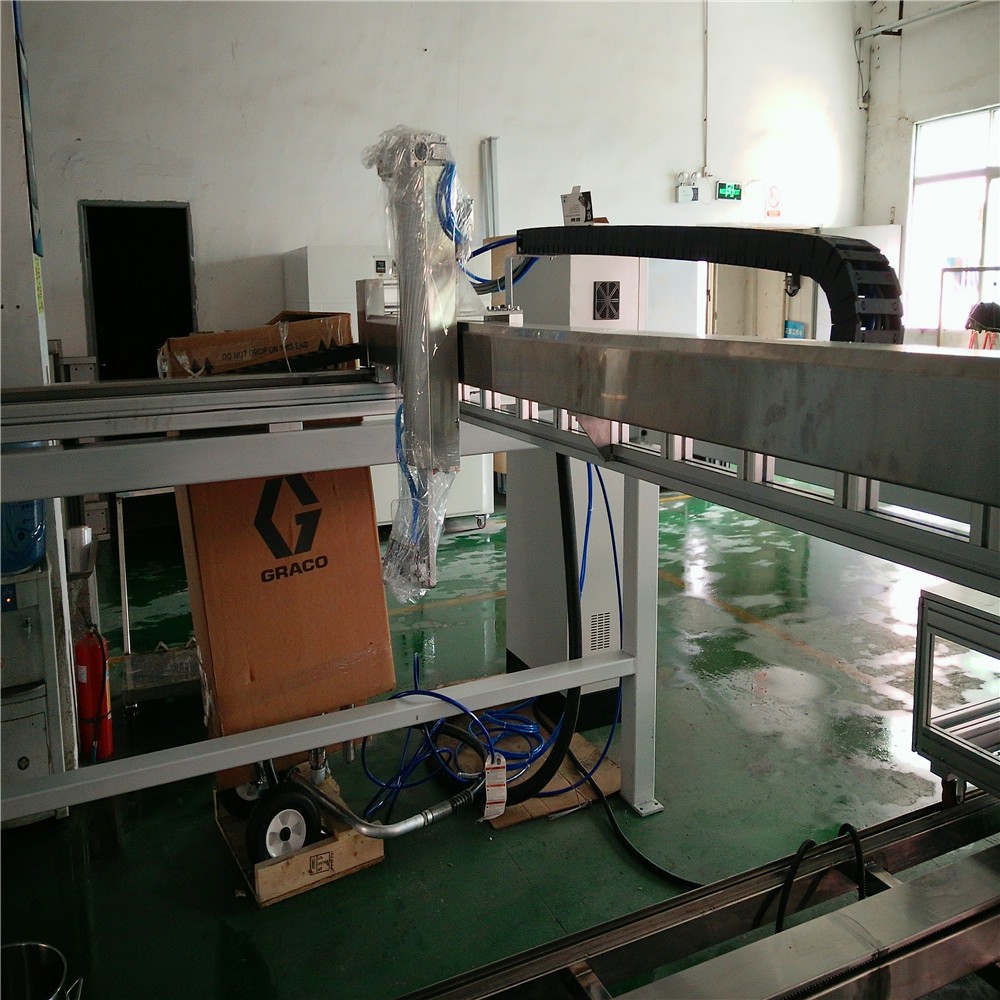

Detailed Images

Machine Parts

Name: servo motor

Brand: Panasonnic

Original: Japanese

positioning accuracy ± 0.5mm

Main Features

Name: Linear guide rail and Silent slide
Brand: HIWIN
Original: Taiwan China
positioning accuracy ± 0.5mm

no noise

Machine Parts

Name: spray gun
Brand: GRACO
Original: American

mixing gas spray gun

Main Features

Name: touch screen
Brand: WEINTEK
Original: Taiwan China
10 inch

Color industrial touch screen

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.
