    High Atomization Automatic Reciprocating Spray Machine ISO9001

    Ask Lasest Price
    Brand Name : songqi robot
    Model Number : SQ400x
    Certification : CE ISO9001
    Supply Ability : 15 Set/Sets per Month
    Price : Negotiable
    Payment Terms : D/P, D/A, L/C, T/T
    Delivery Time : 15-20
    • Product Details
    • Company Profile

    High Atomization Automatic Reciprocating Spray Machine ISO9001

    High Atomization Automatic Reciprocating Spray Machine ISO9001


    Hot sell Automatic Spray Coating Machine for glass / Reciprocating spraying machine

    Product Application

    With the process of society, munal spraying has failed to meet the needs of modern industry. So, it is necessary to use automatic spraying take place of manual spraying.

    This spraying mchine is professional designed for galss. As far as i know , the coating film of glass demands very uniform and smooth,, so, the automatic spraying is your bright choice. Using air spray system is a right way to get a better coatign film than manual spraying .The design of this machine depends on the shape and size , coating process of automotive interior parts.

    The difference between automatic spraying and manual spraying(Normally)
    Automatic spraying
    Manual spraying
    Spray gun
    high atomization
    Low atomization
    Spraying quality
    High
    Low
    Spraying speed
    Fast
    low
    Paint needs
    Less
    more
    Damage to the human body
    Less
    more
    Working hours
    24h
    8h
    managed cost
    Less
    more
    Factory output
    more
    less
    SPECIFICATIONS FOR SPRAYING MACHINE
    Control system
    1. Japanese OMRON PLC

    2. Taiwan WEINTEK Color industrial touch screen

    3. Schneider Electric switch and Power Supply

    4. Japanese OMRON relay

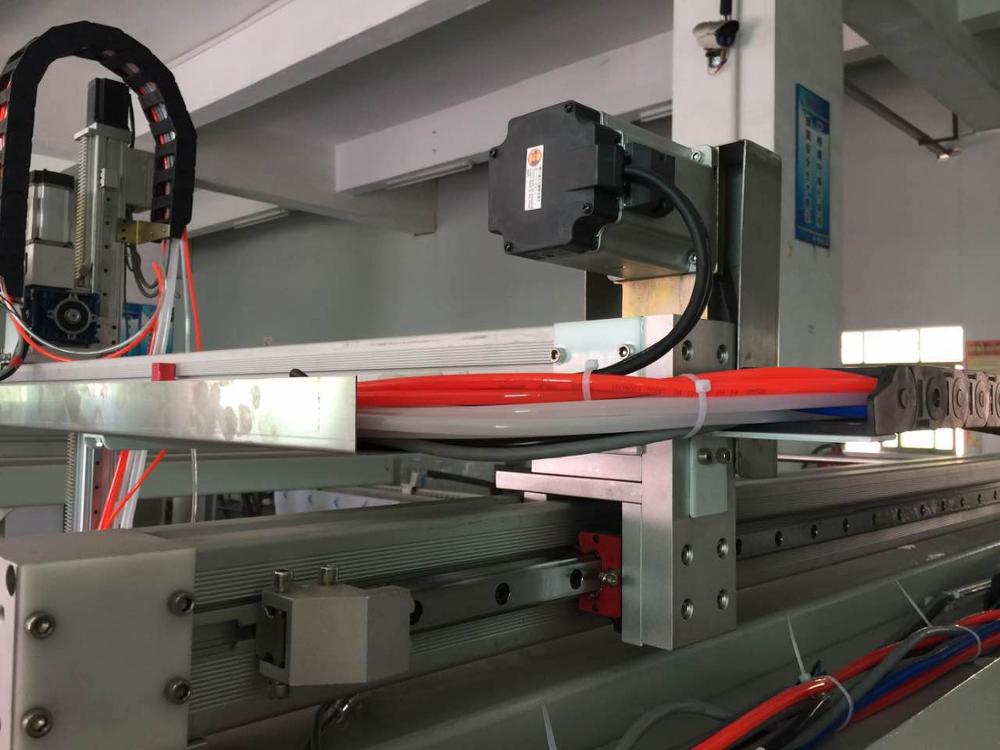

    Drive system
    Japanese Panasonnic servo drive system
    Transmission system
    1. Aluminium profile module

    2. Taiwan HIWIN Linear guide rail

    3. Taiwan HIWIN Silent slide

    4. Precision synchronous wheel

    5. Italy Megadyne Synchronous belt with steel wire

    6. positioning accuracy difference ±1mm
    Product exchang platform
    1. sliding platform, drived by Panasonic servo motor,gear-rack drive.
    2. It is made of aluminum, coated wood board and rubber
    3. automatic move forward and back
    Spray gun

    Amercian GRACO
    Paint supply system


    1. Amercian GRACO plunger pump

    2.Taiwan AIRTAC Solenoid valve, Pressure regulating valve, Pressure gauge
    Power supply
    AC220V50HZ, Single phase three wire
