5 Axis Automatic Reicprocating Painting Machine Multi Power Servo
Drive
High quality Automatic Spray Coating Machine
Easy machine debugging. You can complete the debugging of
conventional products within 15 minutes.
The programming of the machine regards a product plane as a program
segment. When you finish setting the starting point,
ending point and spraying speed, you have completed a program
segment. After completing each procedure of the aircraft,
the entire procedure is completed.
Control system | - Japanese OMRON PLC
- Taiwan WEINTEK Color industrial touch screen
- Schneider Electric switch and Power Supply
4. Japanese OMRON relay |
Drive system | Japanese Panasonic servo drive system |
Transmission system | 1. Aluminium profile module 2. Japan THK Linear guide rail 3. Japan THK Silent slide 4. Precision synchronous wheel 5. Italy Megadyne Synchronous belt with steel wire 6. positioning accuracy difference ±1mm |
Product exchang platform | - Precision divider
- Taiwan CPG Gear motor
3. Japanese Mitsubishi frequency converter |
Product rotation platform | - Precision divider
2.Can be 90 degrees, 180 degrees rotation, continuous rotation |
Spray gun | Japanese ANEST IWATA |
Paint supply system | - Amercian GRACO 308 diaphragm pump
- Pneumatic agitator produce from Taiwan,China
- Taiwan AIRTAC Solenoid valve, Pressure regulating valve, Pressure
gauge
|
Power supply | AC220V50HZ, Single phase three wire |
The detailed configuration of the robot has written in the form,
you can see our automatic spraying painting machine's configuration
is high ,so the failure rate of machine is very low. If i were you
,i would buy a high quality machine if i want to buy a machine from
abroad. Then, why don't you choose us?
Why use Spray Painting Machine?
1. Increase production efficiency
2. Cut down the operating cost
3. Improve product quality and consistency
4. Reduce material waste and boast productivity
5. Cut the standard cost-optimize the storage and complicated process
6. Shortens the product upgrading cycle and the equipment investment
7. Improve the working condition of workers
8. Low down the technical requirements for workers

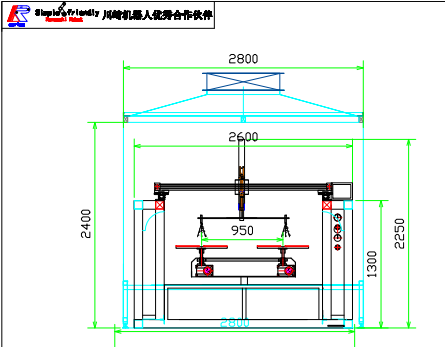

Product details
Exhibition
Our customers' factory
