Wine Bottle 3KW Cnc Spray Painting Machine High Atomization CPG Gear Motor

Ask Lasest Price
Brand Name :	SQROBOT
Model Number :	SQ300X
Certification :	CE ISO9001
Supply Ability :	15 Set/Sets per Month
Price :	Negotiable
Payment Terms :	D/P, T/T, , L/C, , D/A
Delivery Time :	15

Add to Cart

Product Details
Company Profile

Wine Bottle 3KW Cnc Spray Painting Machine High Atomization CPG Gear Motor

Wine Bottle 3KW Cnc Spray Painting Machine High Atomization CPG Gear Motor

efficient and high quality Automatic Spray Coating Machine for wine bottle

Product Application

With the process of society, munal spraying has failed to meet the needs of modern industry. So, it is necessary to use automatic spraying take place of manual spraying.

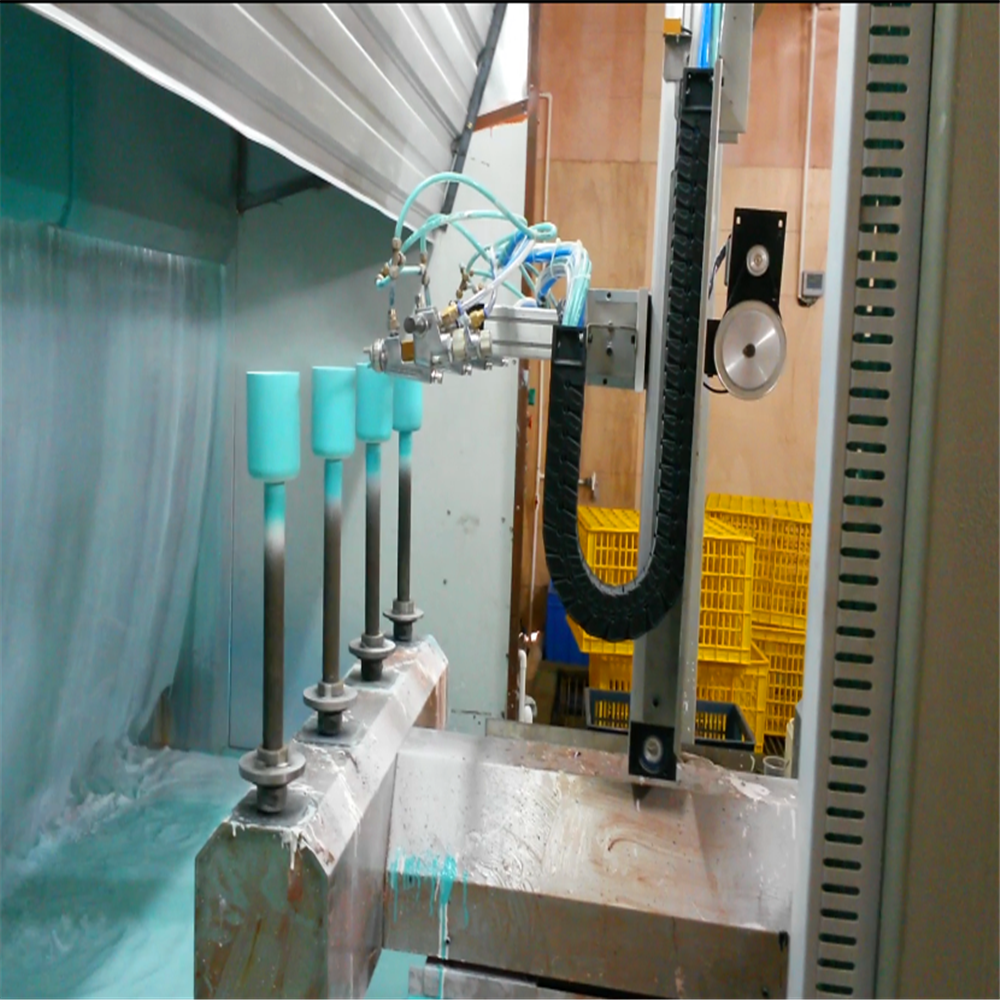

This spraying mchine is professional designed for wine bottle and other round products. This is a reduced version of the painting line. The machine can spray from up to down ,and the spray gun can automatically adjust the angle in the vertical direction. The

The difference between automatic spraying and manual spraying(Normally)
	Automatic spraying	Manual spraying
Spray gun	high atomization	Low atomization
Spraying quality	High	Low
Spraying speed	Fast	low
Paint needs	Less	more
Damage to the human body	Less	more
Working hours	24h	8h
managed cost	Less	more
Factory output	more	less

SPECIFICATIONS FOR SPRAYING MACHINE
Control system	1. Japanese OMRON PLC 2. Taiwan WEINTEK Color industrial touch screen 3. Schneider Electric switch and Power Supply 4. Japanese OMRON relay


Drive system	Japanese Panasonnic servo drive system


Transmission system	1. Aluminium profile module 2. Taiwan HIWIN Linear guide rail 3. Taiwan HIWIN Silent slide 4. Precision synchronous wheel 5. Italy Megadyne Synchronous belt with steel wire 6. positioning accuracy difference ±1mm


Product exchang platform	1.Precision divider 2.Taiwan CPG Gear motor 3. Japanese Mitsubishi frequency converter
Product rotation platform	1. Precision divider 2. Can be 90 degrees, 180 degrees rotation, continuous rotation 3. multi-station rotation
Spray gun	1. Japanese ANEST IWATA
Paint supply system	1. Amercian GRACO 308 diaphragm pump 2. Pneumatic agitator produce from Taiwan,China 3. Taiwan AIRTAC Solenoid valve, Pressure regulating valve, Pressure gauge
Power supply	AC220V50HZ, Single phase three wire

How about after sale serivce?

1. Provide technical support and production line upgrade

2. Feedback withini 12 hour after receive fault notification or service requirement

3. Free training

4. User-friendly English manual or operation video for machine using and maintanence.

6. On time delivery.
