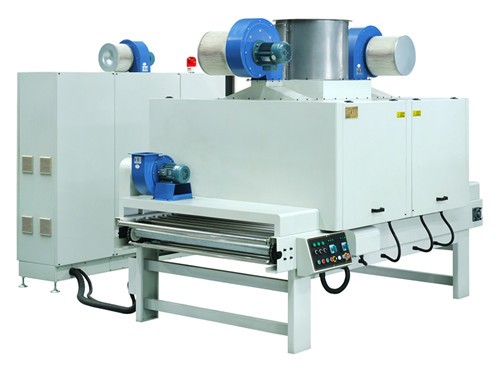

Drying UV Paint 5KW UV Curing Machine Witn Converyor Belt Oven

    Buy cheap Drying UV Paint 5KW UV Curing Machine Witn Converyor Belt Oven from wholesalers

    Buy cheap Drying UV Paint 5KW UV Curing Machine Witn Converyor Belt Oven from wholesalers
    • Buy cheap Drying UV Paint 5KW UV Curing Machine Witn Converyor Belt Oven from wholesalers
    • Buy cheap Drying UV Paint 5KW UV Curing Machine Witn Converyor Belt Oven from wholesalers
    • Buy cheap Drying UV Paint 5KW UV Curing Machine Witn Converyor Belt Oven from wholesalers

    Drying UV Paint 5KW UV Curing Machine Witn Converyor Belt Oven

    Ask Lasest Price
    Brand Name : Songqi
    Model Number : SQ1001
    Certification : ISO9001
    Supply Ability : 10Set/Sets per Month
    Price : Negotiable
    Payment Terms : D/P, T/T, , L/C, , D/A
    Delivery Time : 15-20
    • Product Details
    • Company Profile

    Drying UV Paint 5KW UV Curing Machine Witn Converyor Belt Oven

    Drying UV Paint 5KW UV Curing Machine Witn Converyor Belt Oven


    High quality UV light curing machine witn converyor belt oven


    Product Application

    UV is the abbreviation of ultraviolet (Ultra-VioletRay) English. UV wavelength for industrial use from 200nm to 450nm for its application range. Using UV to illuminate "UV irradiation hardening material and make it hardening process, called" UVCuring Process".

    In the modern industry, the top coating is UV coating, and the UV light curing machine is the ideal way for UV coating.

    As a new curing method, it has the advantages of short curing time, and can significantly improve the production efficiency. And its relative to the traditional oven curing, there are environmental characteristics. Conventional oven curing will produce a lot of formaldehyde, volatile toxic gases will harm people's health. UV curing machine will not produce any toxic substances, is the ideal solution for the glue. However, if the ultraviolet radiation directly to the human body, then it will harm human health, so in the production or application of life should take protective measures to avoid the harm caused by ultraviolet radiation directly to the human body.

    SPECIFICATIONS FOR UV CURING MACHINE
    size
    Mahine :L2000*W1000*H1050mm

    Line width:700mm

    Line height: 700mm

    Feed inlet height:300mm
    frame
    Shell:2mm Cold plate

    Machine frame: 50*50mm Iron square
    transmission
    Two layers of stainless steel mesh belt

    Active and passive large roller

    100w high quality stepless speed regulating motor
    light source
    2 sets of 2KW imported UV light

    Angle and height of UV light can be manually adjust
    exhausting system
    Centrifugal fan
    Drying UV Paint 5KW UV Curing Machine Witn Converyor Belt Oven

    Main Features

    1) It take protective measures to avoid the harm caused by ultraviolet radiation directly to the human body.

    2) Can be connected to the original painting production line, convenient and quick, save labor, reduce costs

    3) Curing speed is rapid, saving time,increasing production.

    4) Small area, saving space


    Certifications
    Drying UV Paint 5KW UV Curing Machine Witn Converyor Belt Oven
    Drying UV Paint 5KW UV Curing Machine Witn Converyor Belt Oven
    Drying UV Paint 5KW UV Curing Machine Witn Converyor Belt Oven
    Drying UV Paint 5KW UV Curing Machine Witn Converyor Belt Oven
    Our Service

    Pre-Sales Service

    * Inquiry and consulting support.

    * Sample testing support.

    * View our Factory.

    After-Sales Service

    * Training how to instal the machine, training how to use the machine.

    * Engineers available to service machinery overseas.

    Packing & Delivery
    Drying UV Paint 5KW UV Curing Machine Witn Converyor Belt Oven
    Packaging
    Size
    2200(L) * 1200(W) * 1400 (H)
    Weight
    530kg
    Packaging Details
    The normal package is wooden box. If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
    Delivery
    Ocean Shipping
