40mm Stainless Steel Curtain Spray Booth 7KW For Painting Machine​

Lowest price spray booth stainless steel water washing spray booth for painting machine

Product Application

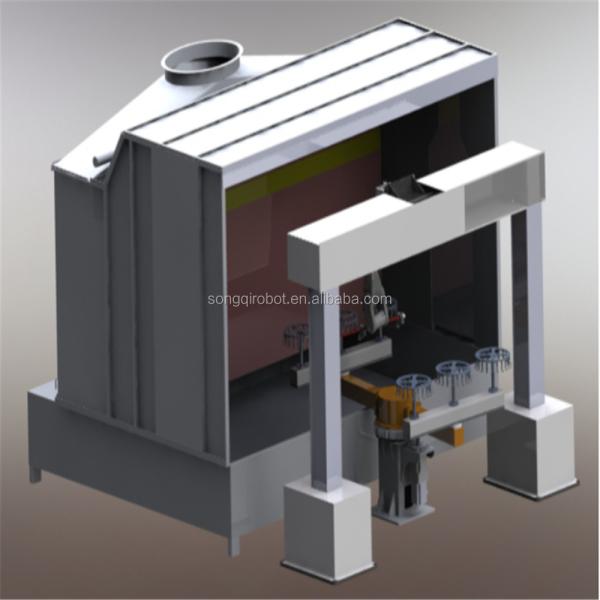

Water curtain spray cabinet is mainly composed of a spray chamber, a water tank, adjustable feet cup, plate and the top plate (by bolts), positive overflow tank, water curtain plate, scroll plate, diversion plate, water retaining plate, front curtain plate, paint mist purification (water pipe), gas water separation chamber, water tank, water filter circulating system, explosion-proof lighting device, axial fan, water pump and pipe fittings (movable and detachable) and control system components, (zigzag plate, scroll device, gas separation chamber of unique structure, high efficiency of removing paint)

SPECIFICATIONS FOR UV CURING MACHINE
Size	W2400*D2200*H2400mm
Style	Single side water curtain
Frame	Side plate: 1.2mm stainless steel plate Bottom water tank: 1.5mm stainless steel plate Water cuitain plate: 1.5mm stainless steel plate Underframe:40mm stainless steel square
Water pump	3HP high quality vertical water pump Enviromental PVC tube
Exhausting system	4KW fan
Light	2 lamp explosion-proof lamp

Main Features

1) It make a better working environment to keep workeer's health.

2) Small area, saving space

Certifications

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery

Packaging
Size	2200(L) * 1200(W) * 1400 (H)
Weight	530kg
Packaging Details	The normal package is wooden box. If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.

Delivery
Ocean Shipping

Shenzhen Songqi robot automation equipment limited company is national high and new technology industry and has a number of invention patents and utility new patents. Our company is Japanese Kawasaki, Yaskawa robot partner in Southern China. Company early (2005-2010) is Tianwei mechanical and Electrical Equipment Co., Ltd., mainly engaged in automatic reciprocating spraying machine, coating automatic line, non-standard coating equipment and so on .With the further establishment of the market and the continuous improvement of the cost of labor in China, automation is more and more popular with the vast number of users. In this market environment, in order to better integrate the company resources, the company retains the company's reciprocating spraying machine project of Tianwei, deep manage robot applications, such as robot spraying, robot palletizing, robot handling, robot stamping, automatic transplanting etc.
