On Line Coating Auto Painting Machine Four Axis 3kw For Motorcycle Helmet

Ask Lasest Price
Brand Name :	Songqi
Model Number :	SQ400x
Certification :	internal controls
Supply Ability :	100 Set/Sets per Year
Price :	Negotiable
Payment Terms :	D/P, D/A, L/C, T/T
Delivery Time :	15-20

Add to Cart

Product Details
Company Profile

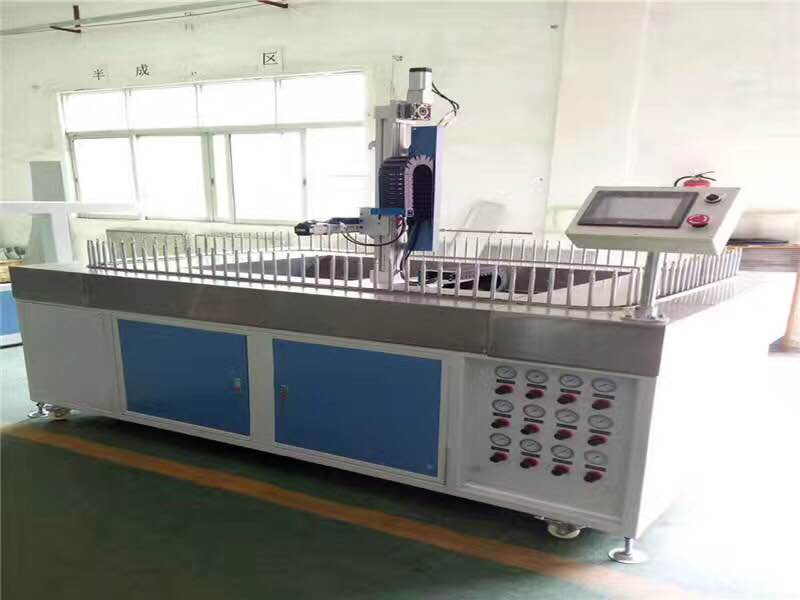

On Line Coating Auto Painting Machine Four Axis 3kw For Motorcycle Helmet

On Line Coating Auto Painting Machine Four Axis 3kw For Motorcycle Helmet

Automatic on-line coating machine for motorcycle helmet

Product Application

This spraying mchine is professional design for motorcycle helmet coating. Its design depend on the shape and size , coating process of motorcycle helmet , we support Amercian GRACO 308 diaphram pump and Japanese ANEST IWATA air spray gun.

When the motorcycle helmet transported to the spray zone, the motorcycle helmet drived to continue rotating, then the machine start to spray, match the line speed. After finish sprayin four motorcycle helmets, the machine back to start position and wait for next four motorcycle helmets. The machine can spray a large number of product with special fixture.

SPECIFICATIONS FOR RECIPROCATING SPRAYING MACHINE
Control system	1.Japanese OMRON PLC 2.Taiwan WEINTEK Color industrial touch screen 3.Schneider Electric switch and Power Supply 4. Japanese OMRON relay


Drive system	Japanese Panasonnic servo drive system


Transmission system	1. Aluminium profile module 2. Taiwan HIWIN Linear guide rail 3. Taiwan HIWIN Silent slide 4. Precision synchronous wheel 5. Italy Megadyne Synchronous belt with steel wire 6. positioning accuracy difference ±1mm


spray modle	on-line tracking spraying match the line speed
Spray gun	Japanese ANEST IWATA
Paint supply system	1.Amercian GRACO 308 diaphragm pump 2.Pneumatic agitator produce from Taiwan,China 3.Taiwan AIRTAC Solenoid valve, Pressure regulating valve, Pressure gauge
Power supply	AC220V50HZ, Single phase three wire

Before sales:

1. Our experts are ready to provide custom design and suggestion for each case.

2. We provide professional consulting service for painting machine and lines.

After-sales:

1. We will send the engineers for onsite installation, fine tune and operation training.

2. We will provide troubleshooting service all lifetime.

3. We provide 1 year warranty for each machine.

4. We will contact you back periodically to learn machine conditions.

5. We also provide the service for further extension on your existing machine.

On Line Coating Auto Painting Machine Four Axis 3kw For Motorcycle Helmet

Detailed Images

Machine Parts

Name: servo motor

Brand: Panasonnic

Original: Japanese

positioning accuracy ± 0.5mm

Main Features

Name: Linear guide rail and Silent slide
Brand: HIWIN
Original: Taiwan China
positioning accuracy ± 0.5mm

no noise

Machine Parts

Name: spray gun
Brand: IWATA
Original: Japanese
air spray gun

Main Features

Name: touch screen
Brand: WEINTEK
Original: Taiwan China
10 inch

Color industrial touch screen

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.
