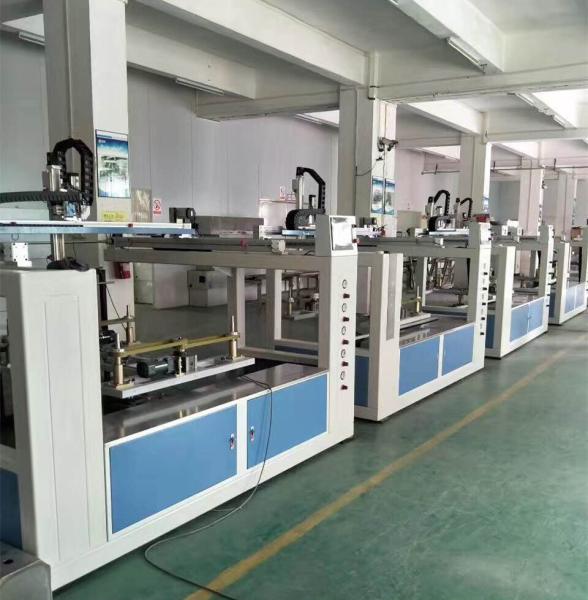

Automatic Reciprocating 6 Axis Spray Painting Machine 220V Speed
Adjustable
Full Automation 6 Axis Spray Painting Machine
Features:
1. 6-axis automatic reicprocating painting machine;
2. 4 trays with indexer;
3. all servo motor is japan or korea make;
4. all data saved in programming for any future operation;
5. all spray length can be saved in programming to save paint;
6. axis movement speed adjustable;
7. distance adjustable from gun to component.
Control system | - Japanese OMRON PLC
- Taiwan WEINTEK Color industrial touch screen
- Schneider Electric switch and Power Supply
4. Japanese OMRON relay |
Drive system | Japanese Panasonic servo drive system |
Transmission system | 1. Aluminium profile module 2. Taiwan HIWIN Linear guide rail 3. Taiwan HIWIN Silent slide 4. Precision synchronous wheel 5. Italy Megadyne Synchronous belt with steel wire 6. positioning accuracy difference ±1mm |
Product exchang platform | - Precision divider
- Taiwan CPG Gear motor
3. Japanese Mitsubishi frequency converter |
Product rotation platform | - Precision divider
2.Can be 90 degrees, 180 degrees rotation, continuous rotation |
Spray gun | Japanese ANEST IWATA |
Paint supply system | - Amercian GRACO 308 diaphragm pump
- Pneumatic agitator produce from Taiwan,China
- Taiwan AIRTAC Solenoid valve, Pressure regulating valve, Pressure
gauge
|
Power supply | AC220V50HZ, Single phase three wire |
Product Details
Why use Spray Painting Machine?
1. Increase production efficiency
2. Cut down the operating cost
3. Improve product quality and consistency
4. Reduce material waste and boast productivity
5. Cut the standard cost-optimize the storage and complicated process
6. Shortens the product upgrading cycle and the equipment investment
7. Improve the working condition of workers
8. Low down the technical requirements for workers
